An ultra-thin frame Full Display series monocrystalline solar panel is principally deployed in off-grid applications, encompassing recreational vehicles (RVs), marine vessels such as boats, sailboats, and yachts, trucks, cabins, camping trailers, tents, hauling trailers, and golf carts. In line with the principle of "simplicity and refinement", the solar panel has effectively mitigated the visual obstruction caused by traditional borders, reducing them to exceedingly narrow lines with a frontal width of a mere 3mm. The surface of the monocrystalline module is fabricated from 2mm chemically strengthened glass, encased within a 15mm-wide aluminum alloy frame, which not only provides structural integrity but also contributes to the panel's overall durability and aesthetic appeal in various off-grid settings.

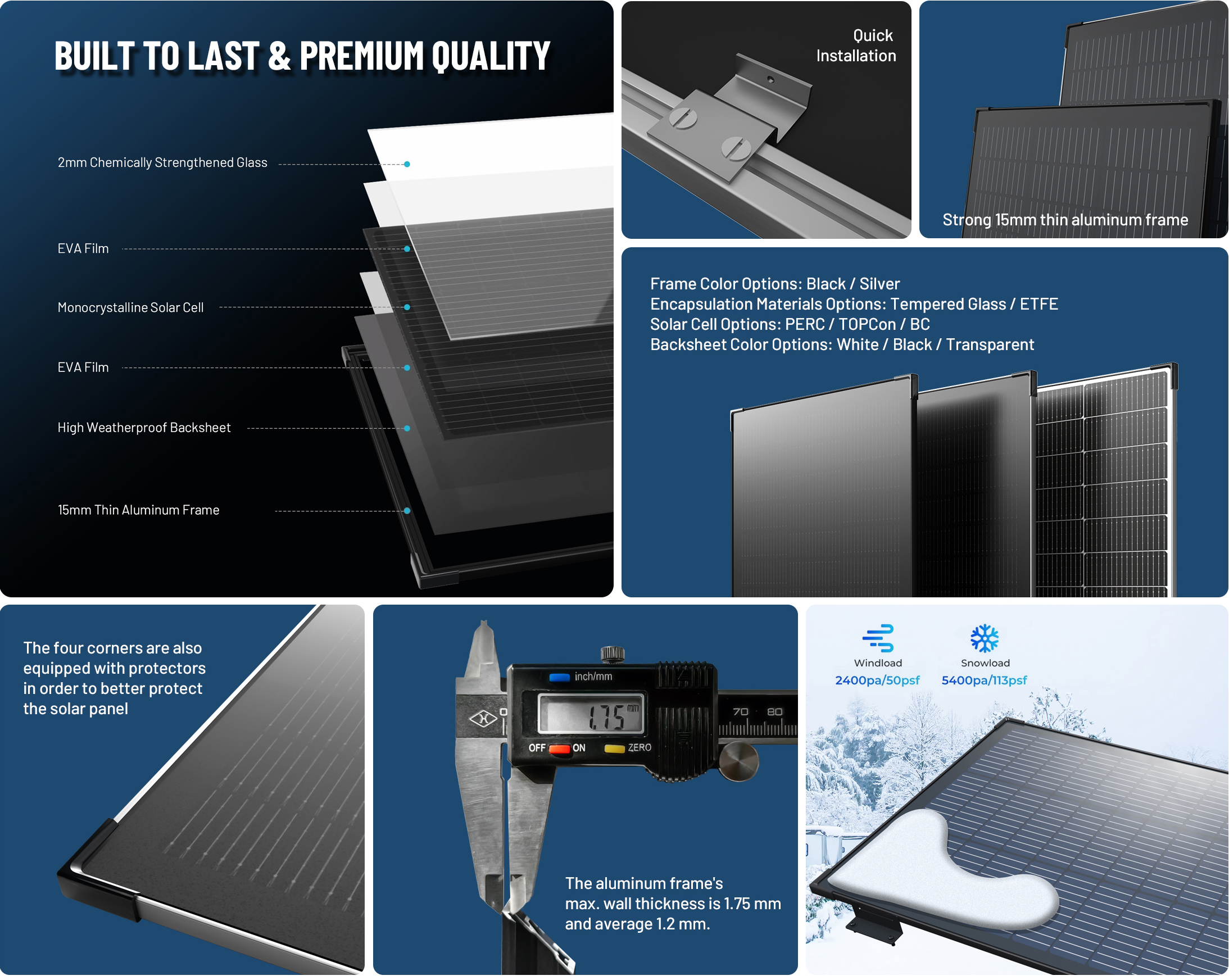

2mm Chemically Strengthened Glass, and strong 15mm thin aluminium frame
There is no need to drill holes as the profile frame is equipped with an installation slot for quick installation.
Certified to withstand: wind load (2400 Pascal) and snowload(5400 Pascal)
IP65 MC4 Connector and an IP65 junction box, ensuring robust protection against heavy water splashes and rain.
